Master Process or
|
SOC
|
HI3518E V300: A dominant frequency of 900 MHz
|
|
|
DDR
|
512M
|
|
Image Sensor
|
Sensor
|
1/3″ color CMOS Sensor
|
|
|
Lens
|
M12, f: 2.8mm, F2.0, 2-megapixel
|
|
|
Visual Angle
|
H (horizontal) 95 degrees; V (vertical) 55 degrees; D (diagonal) 110 degrees
|
|
|
Minimum Illumination
|
0.01 Lux
|
|
Audio
|
Input/Output
|

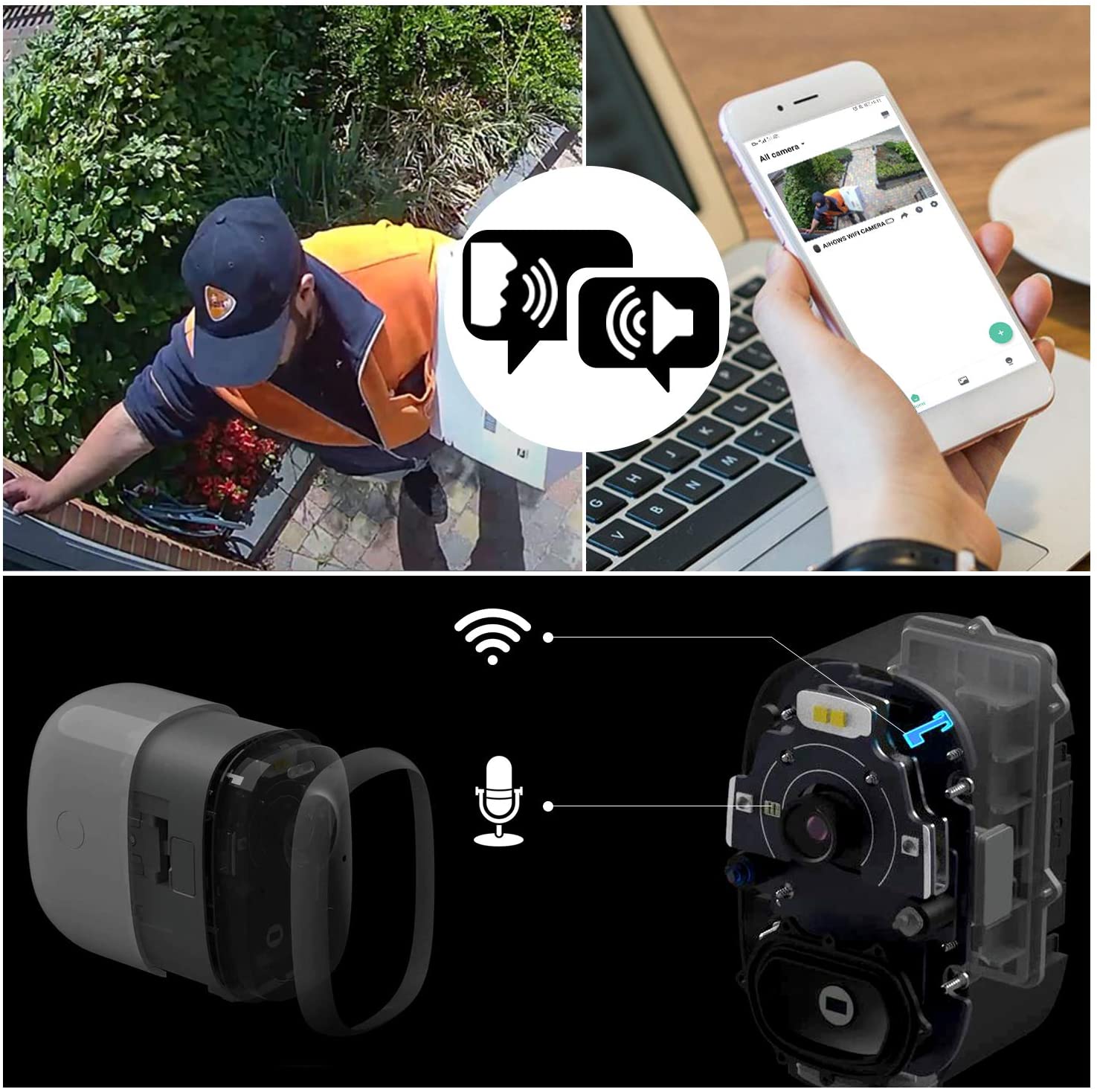

Two-way voice intercom available (built-in microphone and speaker)
|
|
|
Audio Compressing Method
|
AAC
|
|
Video
|
Video Compressing Method
|
H.265
|
|
|
Lighting Frequency
|
50Hz, 60Hz
|
|
|
Image Frame Rate
|
15 fps
|
|
|
Maximum Image Resolution
|
1920*1080P
|
|
|
Light Source for Night Vision
|
Mid-power infrared lamp (850nM in wavelength) / dual-source white-light source with an irradiation distance of 7m
|
|
Network
|
Wireless Network
|
2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
|
|
|
Protocols Supported
|
TCP/IP, UDP/IP, DHCP, RTMP, MUTP
|
|
|
IP Address Supported
|
Dynamic IP address supported
|
|
AI
|
Intelligent Features
|
Human contour detection, activity zone,intelligent push, pet snapshot
|
|
Alarm Methods
|
Alarm Notification
|
Alarm push by mobile APP，white light flashing and alarm sound
|
|
Wake-up
|
Wake-up Method
|
PIR body induction wake-up, and remote positive wake-up
|
|
Video Recording
|
Recording Method
|
Alarm triggered recording, and manual recording
|
|
|
Video Storage
|
Cloud storage, local MICRO SD card, and mobile phone memory
|
|
Indicator Lamps
|
|
RGB tri-color lamp indicating the status of power/network signal/functionality
|
|
Battery
|
Capacity
|

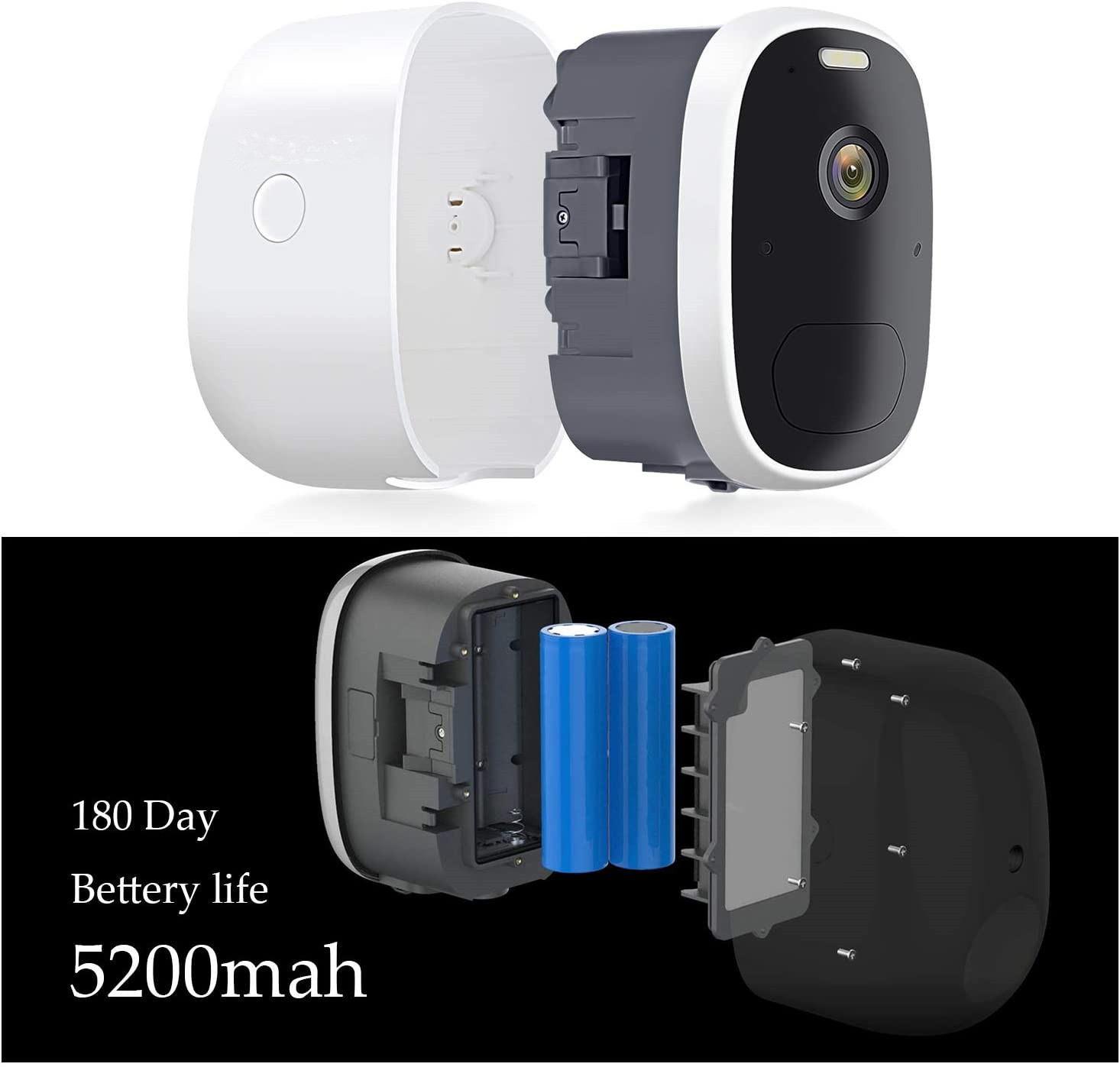

5200mAh(default )/6700mAh(need add 2USD)
|
|
|
Removability
|
Unremovable
|
|
|
Battery Life
|
6 months (provided that 20 10s videos are recorded per day)
|
|
|
Standby Time
|
1 year
|
|
|
Charging Voltage
|
DV 5V+-5%/1.5A
|
|
|
Charge Time
|
Within 8 hours
|
|
|
|
IP65 resistance to dust and water; over-current/over-discharge/over-charge/short circuit/charging protection at high & low
temperatures
|
|
Power Consumption
|
Standby Power Consumption
|
2.4mW (3.8V 0.63mA)
|
|
|
Power Consumption of Daytime Operation
|
1W (3.8V 264mA)
|
|
|
Power Consumption of Operation at Night
|
2.23W (3.8V 588mA)
|
|
Interfaces
|
Power Supply
|
1 MICRO USB interface
|
|
|
SD Card
|
1 MICRO SD card (up to 128GB supported)
|
|
|
Keys
|
1 reset key and 1 on/off key
|
|
Installation Method
|
Installation Method
|

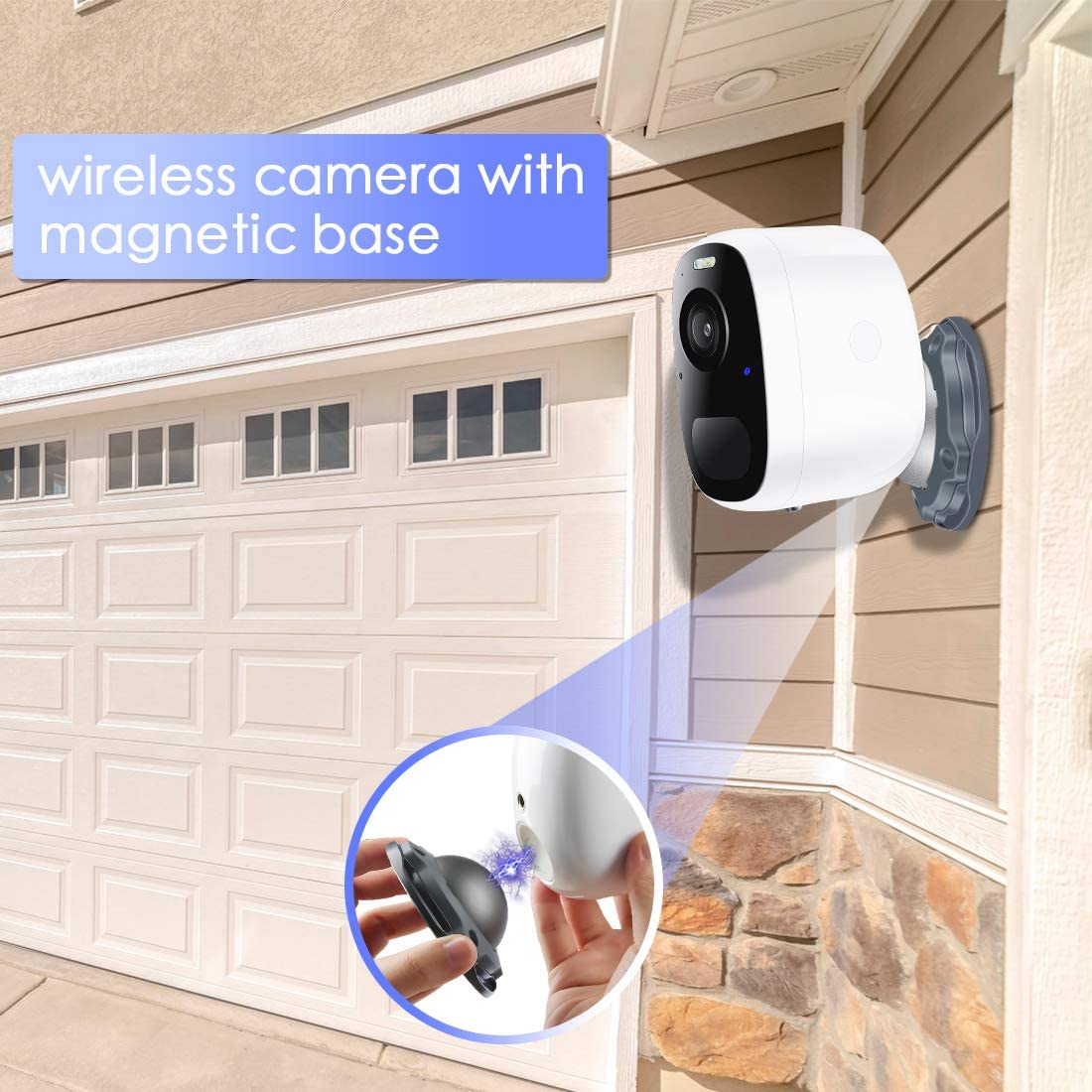

Magnet and 1/4 universal screw holes
|
|
Environment
|
Dustproof and Waterproof
|
IP65
|
|
|
Operating Environment
|
-10°~45°C / 0%~80% (no condensation)
|
|
|
Storage Environment
|
-20°C~60° / 0%~90% (no condensation)
|
|
Specifications
|
Size (LxWxH)
|
84mm*62mm*92.5mm (with bracket excluded)
|
|
|
Net Weight of Bare Machine
|
Approx. 338g
|
|
|
Finished Weight
|
Approx. 570g
|
|
|
Material + Process
|
ABS + PC
|
|
|
Color
|
White with high gloss
|
|
Certifications
|
Certificate
|
RoHS，CE，FCC，WEEE，MSDS，UN38.3
|
